Soundtechnic WD119BT Wireless Bodypack System with H6T Headset Microphone

Products

Soundtechnic WD119BT Wireless Bodypack System with H6T Headset Microphone, Skin Color

($729.00 incl GST)

IMDA APPROVED

Quantity

Product is unavailable. Notify me when product is available

This wireless microphone system is designed for professional use in broadcasting and public speaking environments.

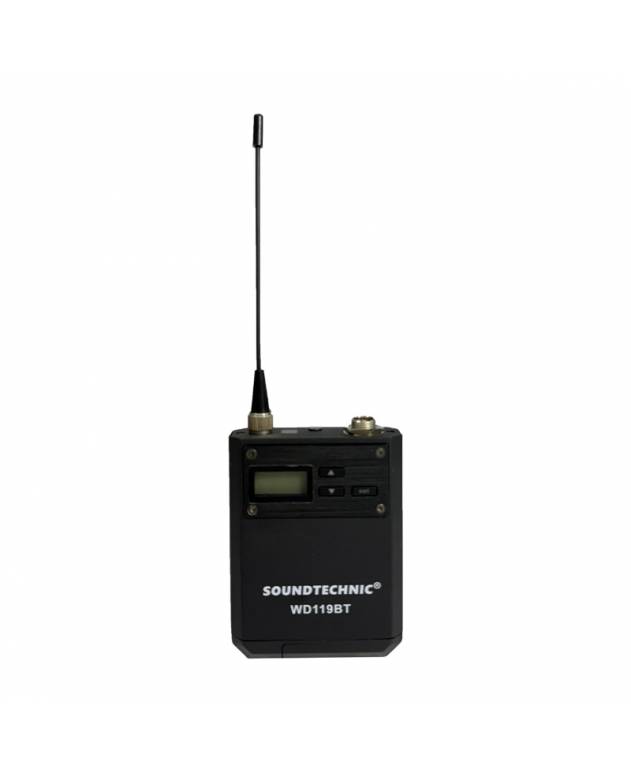

Bodypack Transmitter (WD119BT) – A compact, wireless transmitter unit that clips onto the user's belt or pocket. It features an antenna, a small display screen, and controls for operation.

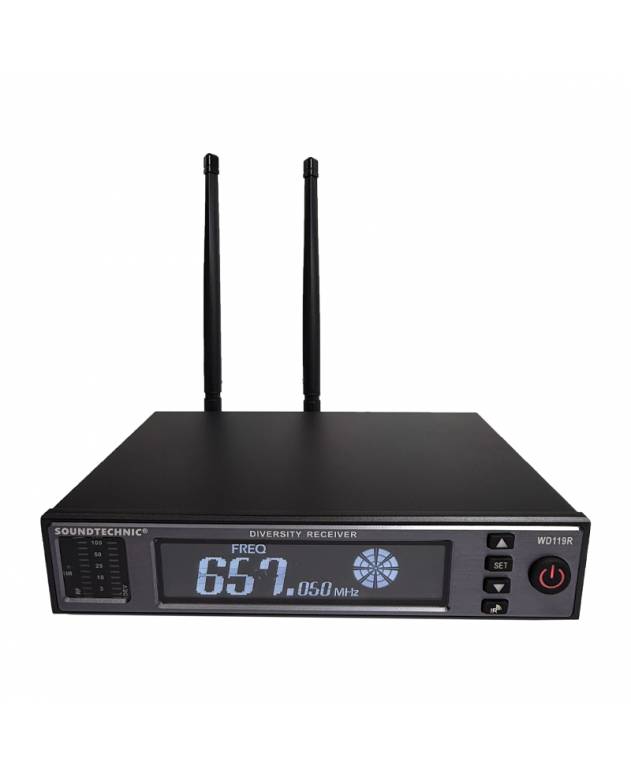

True Diversity Receiver (WD119R) – A tabletop receiver unit with dual antennas for enhanced signal reliability. The front panel includes a large digital display, navigation buttons, and a power button.
Headset Microphone (H6T) – A flesh-colored, lightweight, over-the-ear headset microphone designed for hands-free operation. It’s discreet and comfortable, making it ideal for presentations or stage performances.

WD119R Receiver

Receiver Mode	True diversity single channel receiver
Receiver Frequency Range	645.250 – 685.050 MHz
Maximum Number of Channels	200
Frequency Bandwidth	50 MHz
Receiving Sensitivity	< 3 μV for 52 dB(A) rms S/N
Signal-to-Noise Ratio	> 95 Db
Total Harmonic Distortion (THD)	< 0.2%@1KHz
AF output voltage	6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Antenna	2 BNC Half Wave Antenna
Power Supply	12–18V DC/1A

WD119BT Bodypack Transmitter

Frequency Range	645.250 – 685.050 MHz
Switching Bandwidth	up to 100 MHz
Output Power	10 mW
Nominal/peak deviation	± 24 kHz / ±48 kHz
AF Frequency Response	50Hz-15KHz(-3dB)
Sensitivity	3 Adjustable Level
Power Supply	2 × AA alkaline or rechargeable batteries
Battery Life	> 8 hours (alkaline)
Housing Material	Metal Housing
