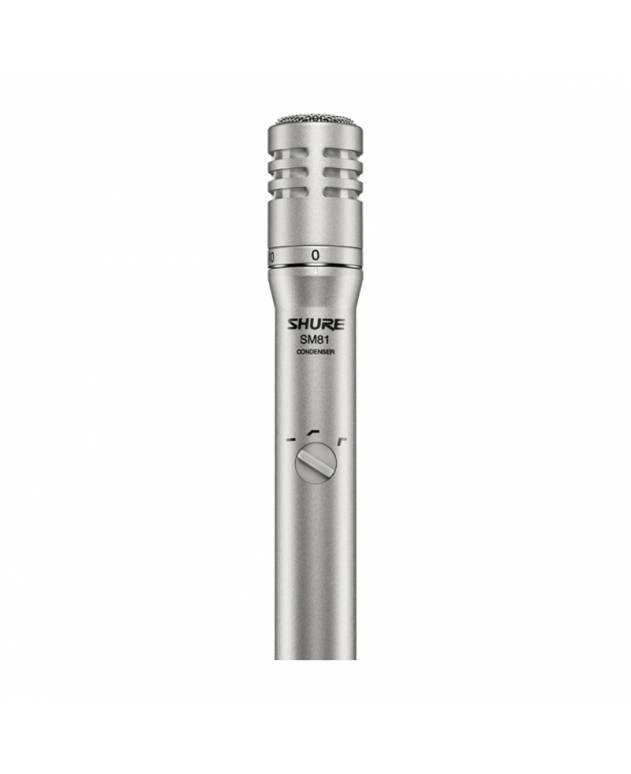

Shure SM81LC Condenser Instrument Microphone
- $558.72
($609.00 incl GST)
Cardioid condenser instrument microphone offers a wide frequency response and low self-noise. Features include flat response curve, low noise and high output clipping level, low distortion over a range of load impedances, and low RF susceptibility.
Note: Phantom Power is required
Out of Stock
Product is unavailable. Notify me when product is available
The Shure SM81 is a high-quality, unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement. Its wide frequency response, low noise characteristics, and low RF susceptibility have made it a standard for applications involving acoustic instruments, especially guitar, piano, and cymbals.
The SM81 is ruggedly constructed. It operates on phantom power and performs over a wide range of temperatures and humidity conditions. It is furnished with a swivel adapter, attenuator-switch lock, foam windscreen, and case for carrying and storage. Other accessories are available.
FEATURES
-
20 Hz to 20 kHz frequency response
-
Flat response curve for accurate reproduction of sound sources
-
Low noise and high output clipping level
-
Low distortion over a wide range of load impedances
-
Cardioid polar pattern, uniform with frequency and symmetric about axis, providing maximum rejection and minimum coloration of off-axis sounds
-
Low RF susceptibility
-
Selectable low-frequency response: flat, 6 or 18 dB/octave rolloff
-
0 dB/10 dB lockable attenuator switch
-
Phantom powering (DIN 45 596 voltages of 12 to 48 Vdc)
-
Rugged steel construction for durability
-
Field-usable over wide range of temperature and humidity conditions
-
Type: Electret Condenser
-
Frequency Response: 20 to 20,000 Hz
-
Polar Pattern: Cardioid
-
Output Impedance: EIA rated at 150 Ω (85 Ω actual)
-
Sensitivity (at 1 kHz, open circuit voltage): -45 dBV/Pa[1] (5.6 mV)
-
Maximum SPL (1 kHz at 1% THD, 1 kΩ load): 136 dB SPL
-
Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 78 dB[2]
-
Clipping Level (1 kHz at 0.25% THD, 1 kΩ load): -4 dBV (0.63 V)
-
Hum Pickup (typical, at 60 Hz, equivalent SPL/mOe): -3 dB
-
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
-
Weight:
-
Net: 0.230 kg (0.5 lbs)
-
Packaged: 0.740 kg (1.625 lbs)
-
-
Attenuator Switch: 0 or −10 dB, lockable
-
Connector: Three-pin professional audio (XLR), male
-
Housing: Steel construction with vinyl metallic paint finish and stainless steel screens
-
Environmental Conditions:
-
Operating Temperature: -6.7° to 49° C (20° to 120° F)
-
Sotrage Temperature: -29° to 74° C (-20° to 165° F)
-
Relative Humidity: 0 to 95%
-
-
Power Requirements: 11 to 52 V DC phantom power (1.2 mA)
-
[1] 1 Pa=94 dB SPL
-
[2] S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
-
- SM81-LC Cardioid Condenser Mic
- A57F Microphone Holder
- Attenuator-switch lock
- Foam windscreen
2 Years
